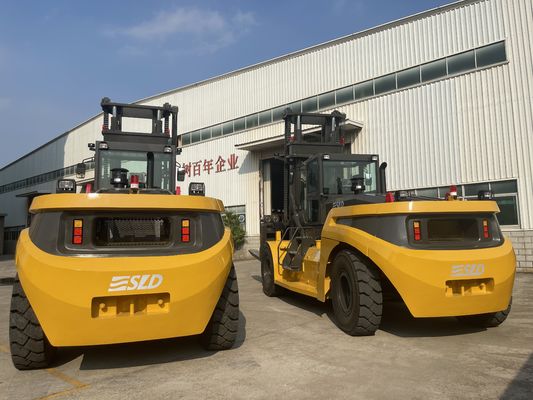

3000mm Mast Lifting Height Heavy Lift Forklift with 15000kgs Rated Load and Hydraulic Transmission

認証
中国 Xiamen Sealand Development Co., Ltd. 認証
中国 Xiamen Sealand Development Co., Ltd. 認証
顧客の検討
発注されたSLD 12トンおよびフォークリフト16トンの、良質、より多くの協同に先に見る完全なサービス。

—— Mohammad Asharf

SLDフォークリフト30トンの、それは私のよい選択、買うより多くのフォークリフトをだった。

—— そうRicky

オンラインです

3000mm Mast Lifting Height Heavy Lift Forklift with 15000kgs Rated Load and Hydraulic Transmission

3000mm Mast Lifting Height Heavy Lift Forklift with 15000kgs Rated Load and Hydraulic Transmission
3000mm Mast Lifting Height Heavy Lift Forklift with 15000kgs Rated Load and Hydraulic Transmission

大画像 :  3000mm Mast Lifting Height Heavy Lift Forklift with 15000kgs Rated Load and Hydraulic Transmission

商品の詳細:
Place of Origin: China
ブランド名: SLD
証明: ISO, CE
お支払配送条件:
Minimum Order Quantity: 1 unit
価格: 交渉可能
Packaging Details: 40FR containers
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100 units per month
詳細製品概要
オプション: サイドシフト,フォーク位置付け器 エンジン: ユチャイ または キュミンス
スピード: 0-20 Km/h 持ち上がる高さをマストを立てりなさい: 3000mm
OEM: カスタマイズされた ステアリングタイプ: 前輪か後輪か
定格負荷: 15000kgs 添付ファイル: フォーク ロール ピン タイヤ ピン
ハイライト:

3000mm mast height heavy lift forklift

,

15000kgs rated load forklift

,

hydraulic transmission heavy lift forklift

1. Who Needs This Machine?

✔ Steel & coil service centres
✔ Precast concrete yards
✔ Port & rail terminals
✔ Mining & quarry support
✔ Heavy-OEM assembly plants

Technical Parameters:

Parameters: Vehicle configuration   FD150
Performance Rated load   15000
Load center   600
Mast tilt angle (front/rear) º 6/12
Overall dimensions Length mm 7200
Width mm 2550
Height mm 3460
Mast lifting height mm 3000
Fork size (L*W*H) mm 1800X200X90
Min. turning radius mm 5050
Max. travel speed (with load) Km/h 22
Lifting speed (with load) mm/s 240
Gradeability (with load) % 20
Weight Kg 17000
Tyre Front   4X12.00-24/20PR
Rear   2X12.00-20/18PR
Wheel tread Front mm 1850
Rear mm 2130
Wheelbase mm 3600
Min. ground clearance mm 270
Engine Model   YC6J175-T302
Rated power KW 129
Max. torque N.m 710



2. Core Benefits

2.1 3000 mm Mast Height

  • 2-stage standard, 3-stage full-free lift optional
  • 1,850 mm free-lift – enter 40 ft containers
  • Wide-view carriage for 360 ° visibility

2.2 15,000 kg Load Capacity

  • Heavy-duty mast rails 40 mm thick
  • Overload valve + load-moment cut-off
  • 1,800 mm forks (options up to 2.4 m)

2.3 Hydraulic Transmission (HST)

  • Closed-loop hydrostatic – no gearbox, no clutch
  • Infinitely variable 0–28 km/h
  • Dynamic braking downhill = less brake wear
  • 15 % fuel saving vs powershift

2.4 Reliability & Service

  • 500 h oil-change intervals
  • Ground-level access to filters & pump
  • CAN-BUS dash shows live pressure & temp
  • 24 h parts dispatch worldwide

3. Safety & Comfort

  • ROPS/FOPS cabin 74 dB(A)
  • Suspension seat with 3-point belt
  • Rear-view camera + 10-inch display
  • LED work lights front & rear
  • Hill-hold & neutral-start safety | Optional: HVAC cabin, fire-suppression, solid tires





4. Optional Attachments

  • 360 ° rotating fork clamp
  • Coil ram Ø 1,200 mm
  • Container spreader 20–40 ft
  • Weigh-scale forks ±0.1 %
  • Solid puncture-proof tires
  • Cold-store -30 °C package

8. Shipping & Warranty

  • FOB any major port
  • 24-month or 2,000 h warranty (whichever first)
  • Free spare-parts kit: filters, seals, hoses
  • English, Spanish, French PDF manuals

5. FAQ (JSON-LD Ready)

Q1: Is the hydraulic transmission reliable in mud?
A: Yes, closed-loop pump & motor are sealed IP65, perfect for dusty quarries.
Q2: Can the mast lift 15,000 kg to full 3000 mm?
A: Absolutely – capacity stays 15 t from ground to 3 m; optional 4.5 m mast derates to 13 t.
Q3: What fuel consumption should I expect?
A: ≈ 6.5 L/h at 75 % duty cycle – 15 % lower than powershift boxes.
Q4: How fast can you ship?
A: Diesel units ex-stock in 5–7 days; electric build 4–5 weeks.
Q5: Do you offer financing?
A: Yes, 30 % down / 3-year lease via DLL Finance.
