Upgrade Your Warehouse Operations with Heavy Lift Forklift and Fork Positioner 600mm Load Center 1800mm Fork Length

認証
中国 Xiamen Sealand Development Co., Ltd. 認証
中国 Xiamen Sealand Development Co., Ltd. 認証
顧客の検討
発注されたSLD 12トンおよびフォークリフト16トンの、良質、より多くの協同に先に見る完全なサービス。

—— Mohammad Asharf

SLDフォークリフト30トンの、それは私のよい選択、買うより多くのフォークリフトをだった。

—— そうRicky

オンラインです

Upgrade Your Warehouse Operations with Heavy Lift Forklift and Fork Positioner 600mm Load Center 1800mm Fork Length

Upgrade Your Warehouse Operations with Heavy Lift Forklift and Fork Positioner 600mm Load Center 1800mm Fork Length
Upgrade Your Warehouse Operations with Heavy Lift Forklift and Fork Positioner 600mm Load Center 1800mm Fork Length

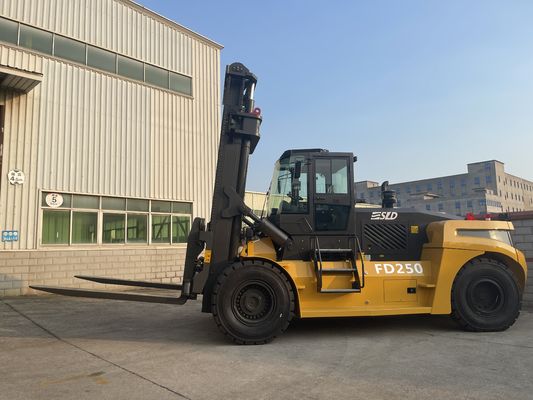

大画像 :  Upgrade Your Warehouse Operations with Heavy Lift Forklift and Fork Positioner 600mm Load Center 1800mm Fork Length

商品の詳細:
Place of Origin: China
ブランド名: SLD
証明: ISO, CE
お支払配送条件:
Minimum Order Quantity: 1 unit
価格: 交渉可能
Packaging Details: 40FR containers
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100 units per month
詳細製品概要
フォークの長さ: 1800mm 色: オレンジ・レッド オーダーメイド
負荷センター: 600mm エンジン: ユチャイ または キュミンス
OEM: カスタマイズされた 定格負荷: 15000kgs
保証: 1〜2年 ステアリングタイプ: 前輪か後輪か
ハイライト:

heavy lift forklift with fork positioner

,

600mm load center forklift

,

1800mm fork length forklift

1. Who Should Upgrade?

✔ High-volume pallet cross-docking
✔ Double-deep racking (600 mm load centre)
✔ Steel & coil yards (1,400 mm spread)
✔ Food warehouses (Li-ion zero-emission)
✔ 3PL fleets—one truck handles multiple pallet sizes

2. Key Upgrade Benefits

2.1 Hydraulic Fork Positioner

  • 200–1,400 mm spread in 3 s
  • ±100 mm sideshift (no lost load centre)
  • ±2 mm repeat accuracy—perfect for 600 mm load centre

2.2 1,800 mm Fork Length

  • Handles two EU pallets side-by-side
  • Tapered tips + polished finish = easy pallet entry
  • 80 mm heel thickness for 10-ton loads

2.3 Heavy-Lift Carriage

  • 10,000 kg @ 600 mm—no mast deflection
  • Wide-view carriage for 360° visibility
  • Bolt-on wear strips—10-minute replacement

2.4 Multi-Power Choice

  • Li-ion 80 V 920 Ah: 2 h fast-charge, -30 °C package
  • Diesel: Cummins 129 kW, 200 L tank = 12 h
  • LPG: Dual-fuel PSI 2.4 L, indoor & outdoor use

3. Safety & Comfort

  • ROPS/FOPS cabin 74 dB(A)
  • Suspension seat with 3-point belt
  • Rear-view camera + 10-inch dash
  • LED light package 360°
  • Hill-hold & neutral-start safety
  •

Technical Parameters:

Parameters: Vehicle configuration   FD150
Performance Rated load   15000
Load center   600
Mast tilt angle (front/rear) º 6/12
Overall dimensions Length mm 7200
Width mm 2550
Height mm 3460
Mast lifting height mm 3000
Fork size (L*W*H) mm 1800X200X90
Min. turning radius mm 5050
Max. travel speed (with load) Km/h 22
Lifting speed (with load) mm/s 240
Gradeability (with load) % 20
Weight Kg 17000
Tyre Front   4X12.00-24/20PR
Rear   2X12.00-20/18PR
Wheel tread Front mm 1850
Rear mm 2130
Wheelbase mm 3600
Min. ground clearance mm 270
Engine Model   YC6J175-T302
Rated power KW 129
Max. torque N.m 710
